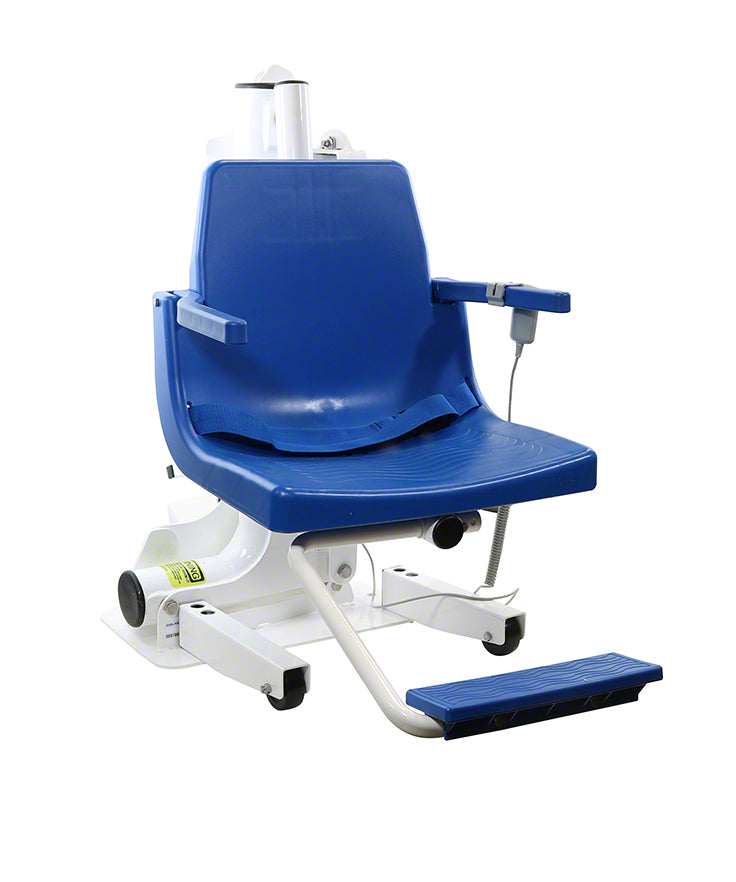

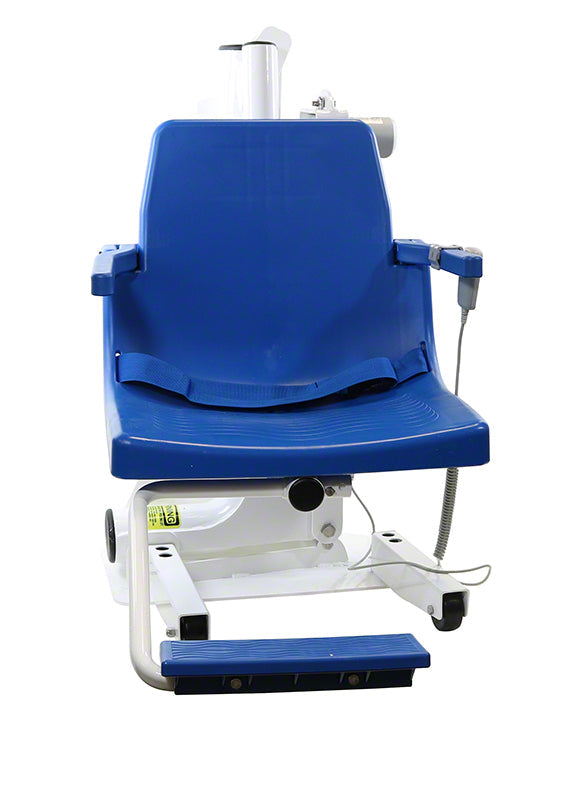

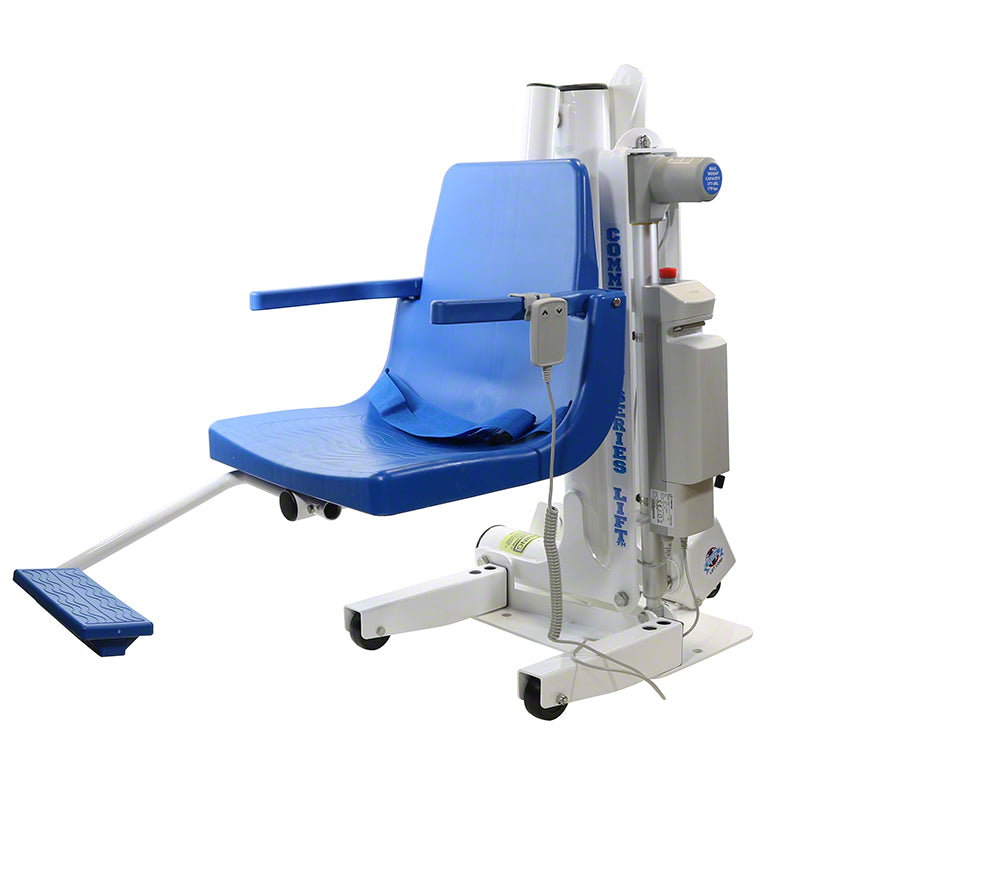

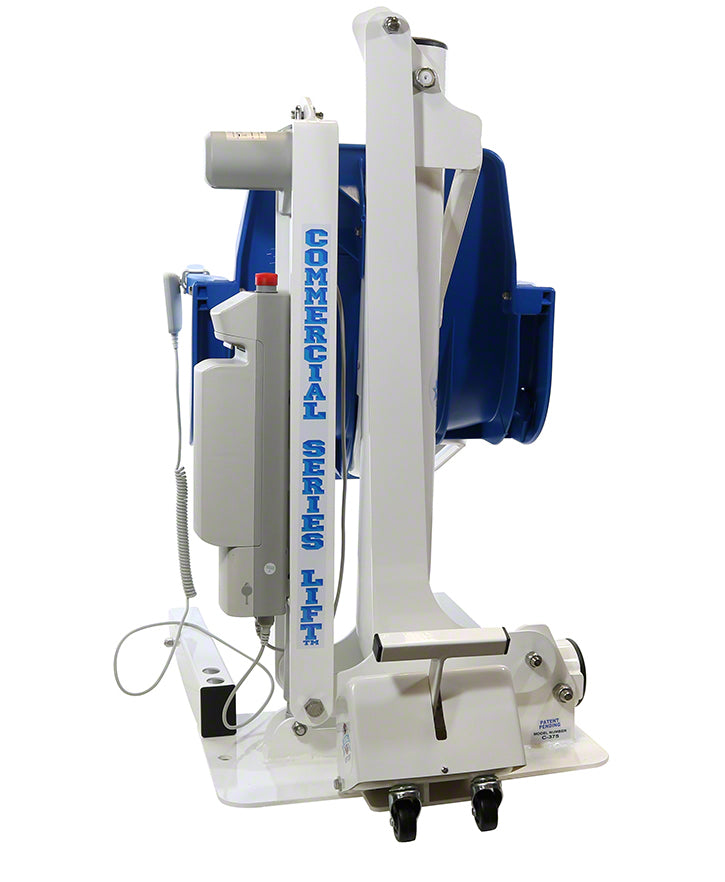

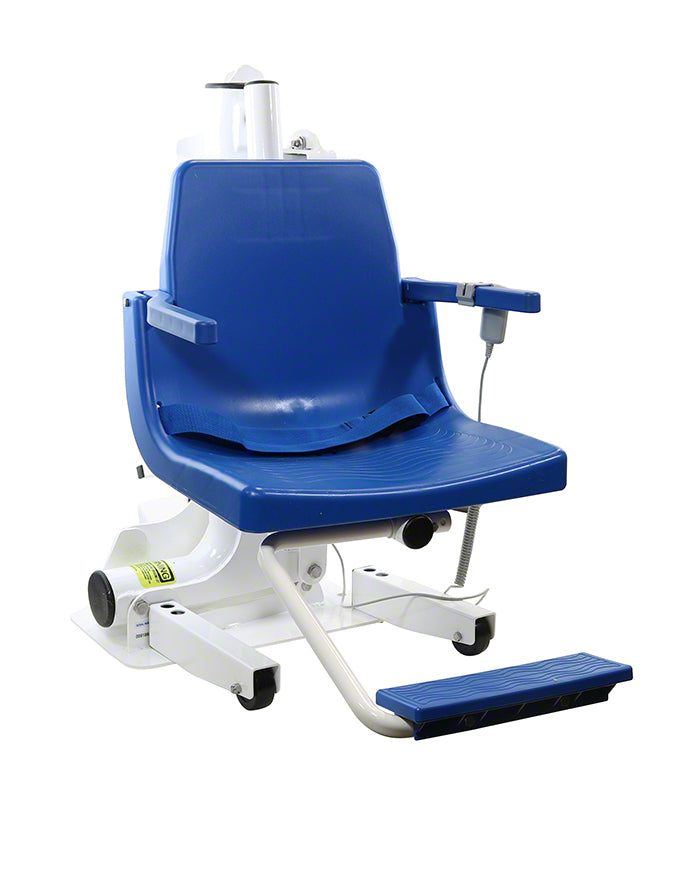

C-450 Portable Commercial Pool Lift with Tri-Point Anchor
The C-450 Portable Commercial Pool Lift is designed for versatility and easy mobility, making it an ideal choice for pool facilities. It is ADA-compliant when secured in a fixed position using the Tri-Point Anchor. With a 450-pound lifting capacity, this lift provides a safe and efficient transfer into and out of the water.
Safety & Accessibility Features
Equipped with an Emergency Stop Button and an Emergency Return System, the lift ensures that in the event of a handset or control malfunction, the power source directly connects to the actuator, safely returning the user to the up position and out of the water. The lift also includes armrests, a footrest, and a safety belt for added security and comfort.
Durability & Portability
Constructed from stainless steel with a UV-resistant powder coating, the C-450 Series is built for long-term durability. It operates on a 24-volt battery system and comes with a charging station. Unlike traditional portable lifts that rely on heavy counterweights (which can weigh up to 1,000 pounds), the C-450 uses a bolting system, making it much easier to transport and store.
Tri-Point Anchor Installation
The Tri-Point Anchor is designed for new construction and must be bonded when the concrete is poured. If installing on an existing deck that is less than 6 inches thick or in poor condition, a 3 x 3-foot section of the deck will need to be cut out and re-poured to meet the required depth before installing the anchor.
ADA Compliance & Legal Requirements
As required by the Americans with Disabilities Act (ADA), all commercial and public pools must provide an accessible means of entry. The C-450 Portable Commercial Pool Lift ensures individuals with disabilities can safely, comfortably, and independently transition from the pool deck into the water. Many state and local governments also require pool lifts for compliance with local pool codes.
Product Features:
• 450 lb. lifting capacity
• Fully ADA-compliant when anchored
• Tri-Point Anchor – ideal for new construction
• Emergency Return System for added safety
• Equipped with armrests, footrest, and safety belt
• Battery-powered 24-volt system with charging station
• User-friendly controls for smooth operation
• Right-side seat position
• Compatible with spas and pools
• Lifetime structural warranty for long-term reliability
