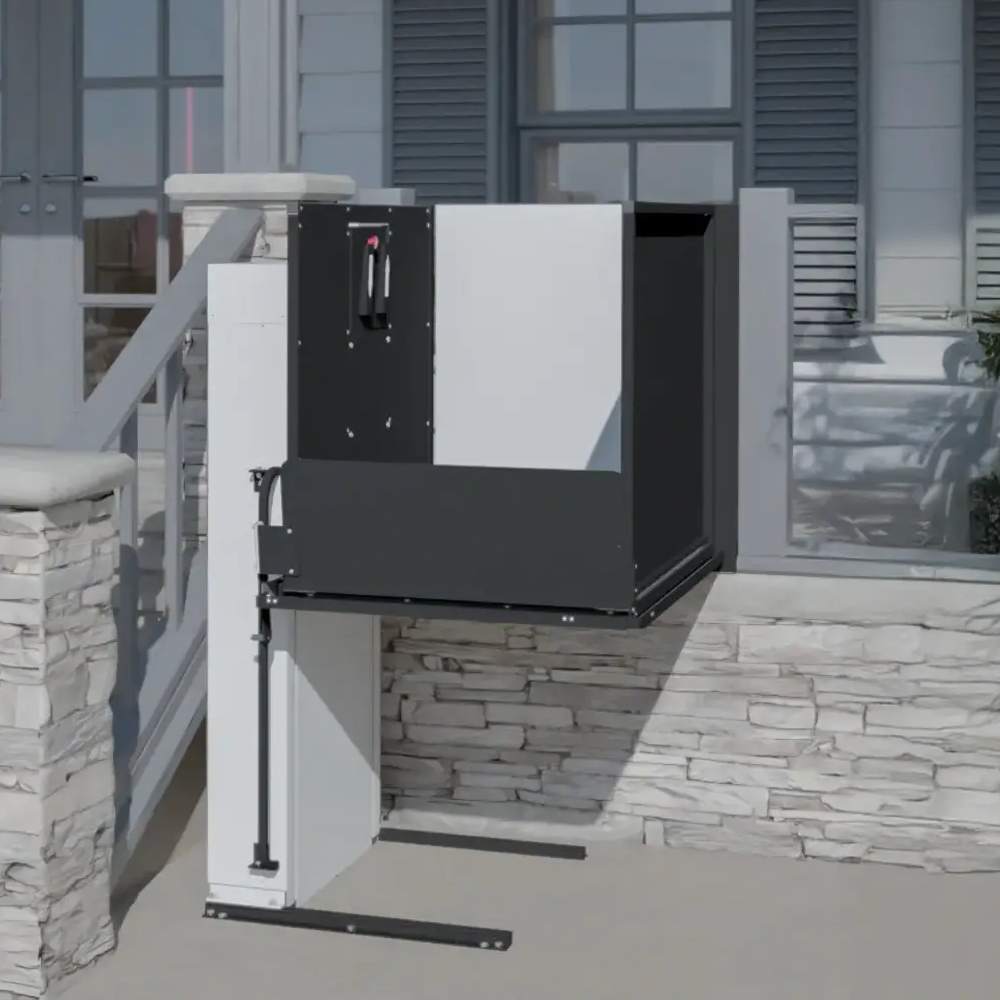

FLEX Residential Wheelchair and Scooter Lift
RAM Manufacturing has been a leader in the lift industry for over 30 years, consistently delivering quality and innovation. The FLEX Residential Wheelchair Lift is a testament to this dedication, offering a reliable, customizable solution for improved home accessibility. With a compact design, smooth operation, and advanced safety features, this lift enhances mobility and quality of life.
Designed for Extreme Conditions
• Outdoor Use – Proven to operate in harsh climates, including temperatures as low as -40°F.
• Beach & Sandy Areas – The powder-coated steel frame ensures long-term durability.
• Custom Height Solutions – Whether accessing an upper level indoors or an outdoor deck, the FLEX lift can be tailored to any height.
Standard Features by Lifting Height:
• 28 Inches – 15” toeplate, solid platform with safety pan.
• 52 Inches – 15” toeplate, solid platform with safety pan.
Key Specifications:
• Lifting Capacity – 750 lbs
• Travel Speed – 8 ft/minute
• Entry/Exit Options – Straight through, 90-degree access, or in-out same side
Platform Sizes & Footprint:

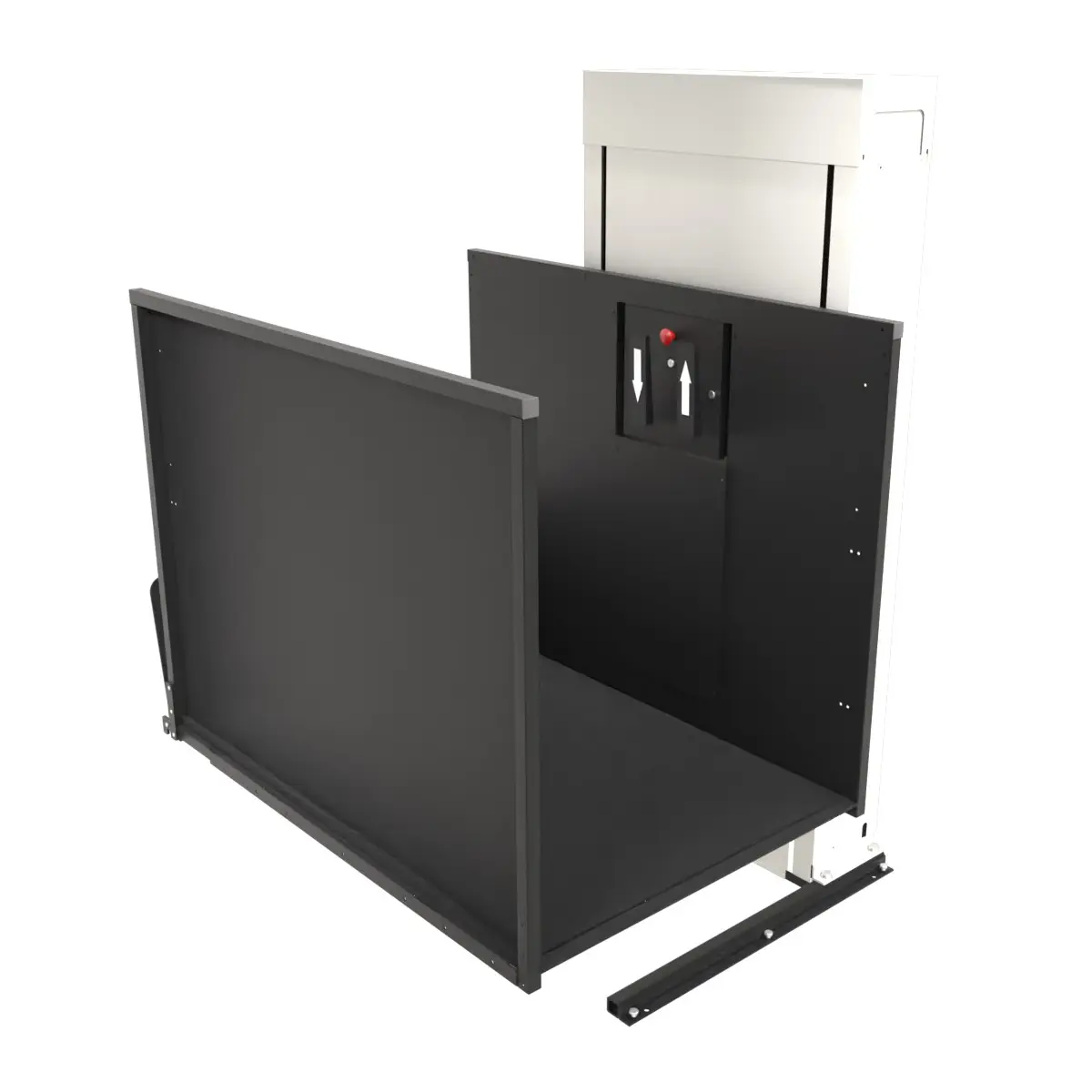

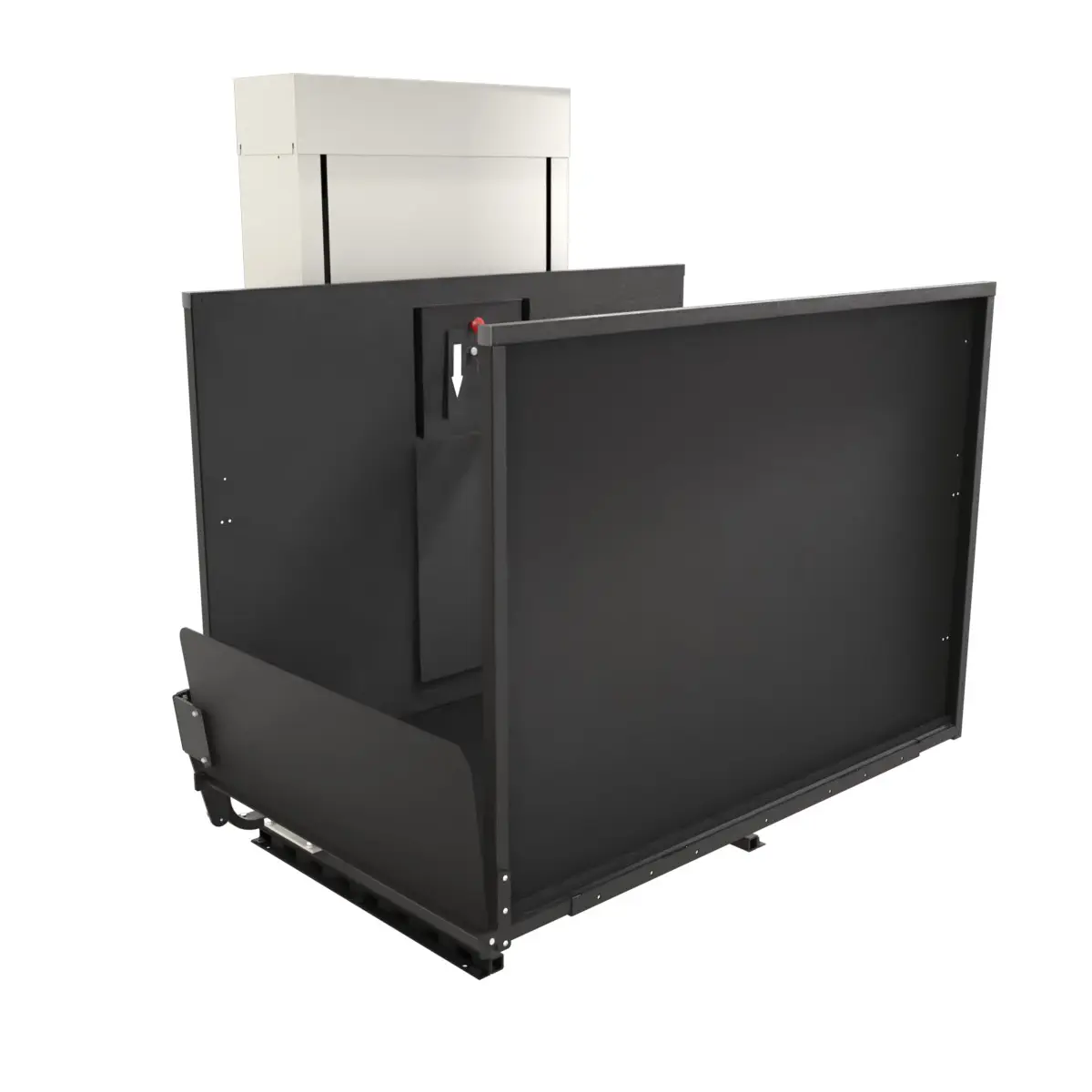

• Straight Through Platform – 36” x 48” (Total footprint: 52.5” x 48”)

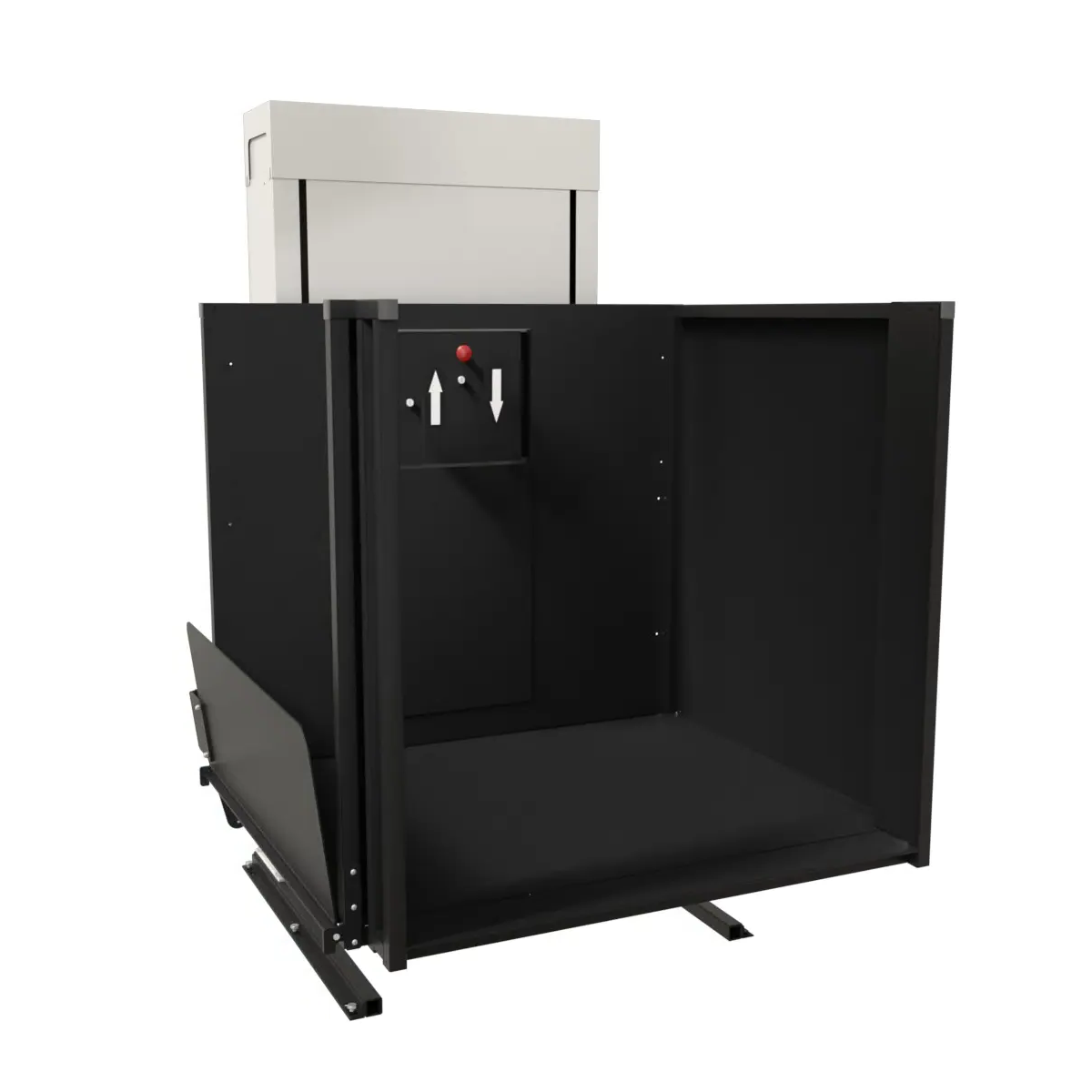

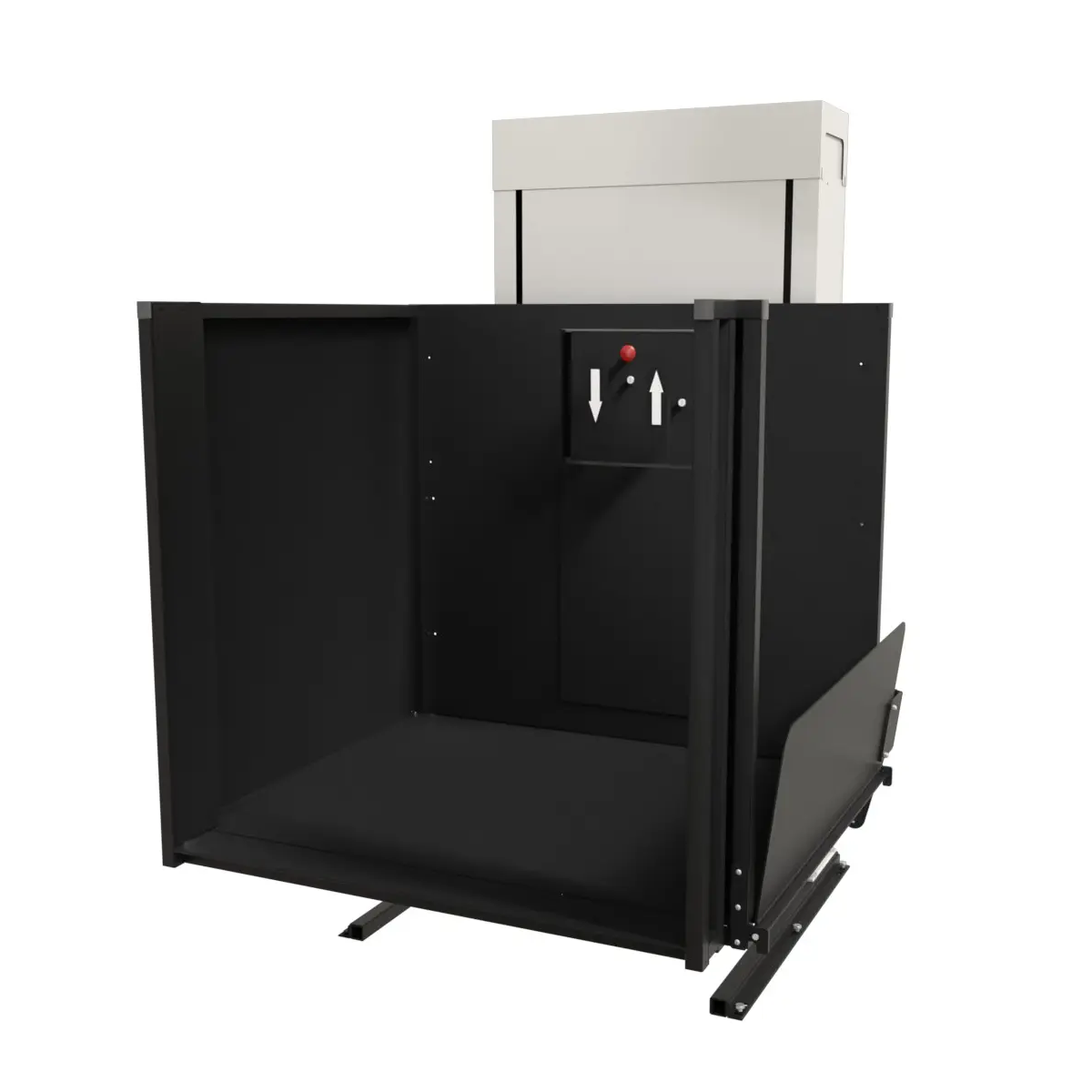

• 90-Degree Access Platform – 42” x 48” (Total footprint: 56” x 48”)
Features & Benefits:
• Easy Installation – Designed with maneuverable components for quick assembly and minimal site preparation.
• All-Electric Drive System – Reliable, powerful, and whisper-quiet. No hydraulic fluid, no harsh odors.
• Zero-Load Start Design – Patented technology allows the motor to reach full speed before lifting, ensuring smooth operation in extreme weather and extending component life.
• Soft Touch Paddle Controls – Oversized, responsive controls make operation easy.
• Fully Customizable – Options include colors, handrails, push buttons, and safety devices. Three-stop configurations and various entry/exit layouts available. Please call us for a customization specific for your needs. Please note All Black or All White color options are available for an additional $375.
Why Choose the FLEX VPL?
• Operates in harsh climates, including sandy areas and extreme cold (-40°F) or heat.
• Custom-size platforms available to fit your space.
• Non-wobble, direct screw drive with safety nut.
• Easy-access fuse box on the carriage.
• Optional solid walls & landing gates.
We also offer the following tower heights:
• 72” Lift – 94.5” Tower
• 96” Lift – 120.5” Tower
• 120” Lift – 144.5” Tower
• 144” Lift – 168.5” Tower
• 168” Lift – 192.5” Tower
*** Please note: Price does not include shipping. Once the order is placed, we will reach out with a shipping estimate, or give us a call, or email us, for shipping estimate to your location.
